Precast Concrete Mould Turnover Wet Cast Doser Machine For Floor Tile Making
Datos del producto:
| Lugar de origen: | China |
| Nombre de la marca: | HTX |
| Certificación: | HTX-P-01 |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1set |
|---|---|
| Precio: | 15000-80000/USD |
| Detalles de empaquetado: | Requisitos normalmente del cartón de la caja o de cliente de siguiente |
| Tiempo de entrega: | 50days |
| Condiciones de pago: | L/C, T/T, Western Union |
| Capacidad de la fuente: | 500sets/month |
|
Información detallada |
|||
| Nombre: | Maquinaria echada mojada | Voltaje: | 220V |
|---|---|---|---|
| Factores de venta dominantes: | Alta productividad | Capacidad: | 800-1000m2 |
| Tipo del ladrillo: | Sistema de dosificación concreto | peso: | 2000kg |
| Resaltar: | Precast Concrete Wet Cast Machinery,Floor Tile Making Wet Doser Machine,Mould Turnover Wet Cast Concrete Machinery |
||
Descripción de producto
Precast Concrete Wet Cast Mould Turnover Wet Doser Machine Floor Tile Making Equipment
Product Description

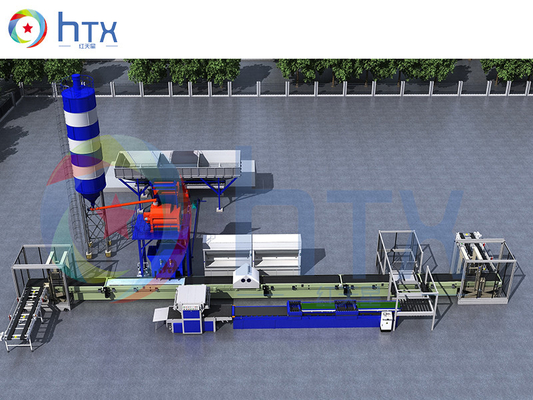

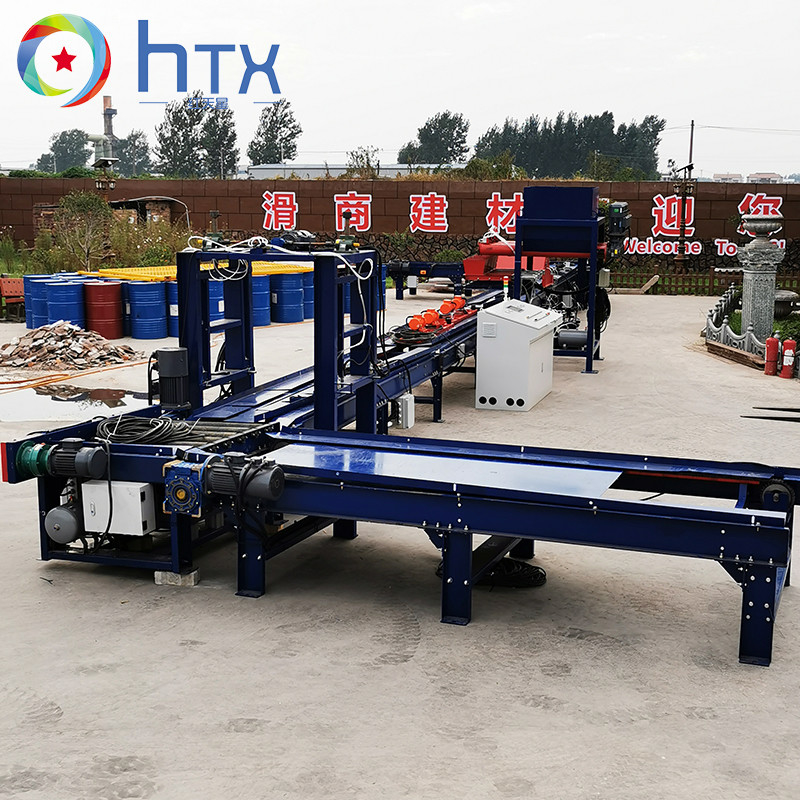

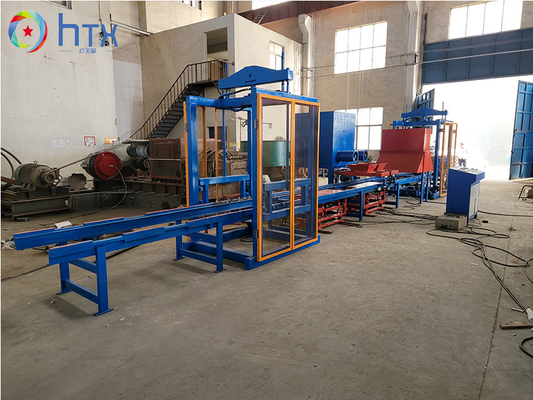

wet cast concrete machinery Production line include :Wet concrete dosing system , Cement Silo ,Batching machine, Auto Concrete forced Mixer,Forklift,Auto unloading machine,Auto Spray Machine,Auto Dosing Machine,Auto Stacking Machine,Pallet transfer machine,Empty Pallet Belt conveyor,Full Pallet Belt Conveyor,Air compressor, Auto Screen controller .Wet concrete dosing system, is suitable for different silicone molds, rubber molds and plastic molds, size range from 200*200mm to 1500*1500mm, available for producing the artificial stone both for wall and floor paving, 3D Wall panel, terrazzo floor tile, etc .
Specifications
| Name | Model | Specification |
Size (mm) |
Power (Kw) |
Capacity (m2/day) |
Weight (Kg) |
|---|---|---|---|---|---|---|
| Artificial stone production line | HTX-P-01 |
Hydraulic driving;Auto feeding; vibrating and timing feeding |
7000*1000*1800 | 12.7 | 1000-1200 | 2000 |
| Wet Cast Machinery | HTX-P-01A | Full Auto,timing feeding and vibration, weighing system; | 12000*1000*2000 | 9.1 | 800-1000 | 2000 |
Applications
Auto Wetcast Manufacture System Production line advantages:
1. More efficient production, can reach 800M2 per day (8 hours).
2. The production saves labors, only 5-6 workers are needed, which can largely reduce the labor cost of factory output.
3. The production functions are all available, including unloading, spray paints, concrete dosing and concrete stacking, concrete dosing can be calculated kilograms, not by time; thus to keep the dosing in a more accurate way, which can be used for plastic molds of floor tile, terrazzo tiles, and silicone molds for artificial stone etc.
4. The auto spray painting machine can not only remove dust from the mold surface, but also spray color paint to beautify the artificial stone, improve the efficiency and labor numbers, or spray the mold release oil to achieve better mold release, and can also be turned on or off separately.
